Experienced supplier of Vertical machining center series

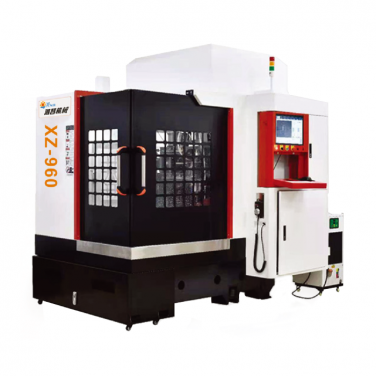

Vertical machining center series

Zhongshan Xiangzhi mechanical equipment Co., Ltd is one of the toppest Vertical machining center series in China.During these years of exporting , Zhongshan Xiangzhi mechanical equipment Co., Ltd now has rich experience in the worldwide markets

Tel: +86-13715675215 E-mail: ioyq0828@gmail.com E-mail: ouzhibing168@gmail.com

Feature

Specification

Video

Mechanical Features:

1. Use a integrated good technology, enclosure structure, internal W reinforcement reinforcement design and words.

2. Machine adopt unique beams, lathe bed integration technology. Gantry high structure rigidity, ensuring long-term mechanical precision and service life, strong vibration resistance.

3. Three axis adopts imported high-precision linear guide and ball screw, wear resistance, low friction coefficient, high positioning accuracy and flexibility, the characteristics of the smooth movement.

4. Imported Japanese NSK bearings and couplings

5. High speed, high torque, high precision motorized spindle, can meet the demand of high speed machining and precision, which can realize small precision mould and parts for high speed drilling and milling, high accuracy, little vibration, low noise.

PROJECT	UNIT	XZ-850	XZ-1165	XZ-1370	XZ-1580
X/Y/Z axis travel	mm	800x500x280	1100x650x600	1300x700x650	1500x800x700
Distance from spindle end to worktable	mm	80x650	120x720	150x750	170x870
Workbench area	mm	800x680	1200x650	1400x700	1500x850
Maximum load	kg	600	800	1200	1600
Spindle motor	kw	5.5	7.5	11	15
Spindle speed	rpm/mm	6000/8000	6000/8000	6000/8000	6000/8000
Spindle specifications		BT40 high-speed mechanical axis (optional)	BT40 high-speed mechanical axis (optional)	BT50 high-speed mechanical axis (optional)	BT50 high-speed mechanical axis (optional)
Maximum travel speed of three axes	mm/min	1500	1500	1500	1500
Maximum machining speed of three axes	mm/min	6000	6000	6000	6000
CNC system resolution	mm	0.008	0.008	0.008	0.008
Repeat positioning system	mm	JIS±0.02/300	JIS±0.02/300	JIS±0.02/300	JIS±0.02/300
Positioning accuracy	mm	JIS+0.02/300	JIS+0.02/300	JIS+0.02/300	JIS+0.02/300
Spindle cooling system		Oil cooling (standard)	Oil cooling (standard)	Oil cooling (standard)	Oil cooling (standard)
Tool magazine capacity	Put	24	24	24	24
Cutting oil system		Dual nozzles (cutting fluid, compressed air)	Dual nozzles (cutting fluid, compressed air)	Dual nozzles (cutting fluid, compressed air)	Dual nozzles (cutting fluid, compressed air)
CNC system		Xiangzhi programming-free system	Xiangzhi programming-free system	Xiangzhi programming-free system	Xiangzhi programming-free system
Tool setter		Automatic tool setting	Automatic tool setting	Automatic tool setting	Automatic tool setting
Power supply and total power		Three-phase AC 380V 31CW-15KW	Three-phase AC 380V 31CW-17KW	Three-phase AC 380V 31CW-17KW	Three-phase AC 380V 31CW-17KW
Three-axis servo motor power	kw	2.3 (x/y/z)	2.3(x/y/4.3z)	4.3(x/Y/Z)	4.3 (x/y/5.5z)
Maximum tool diameter (depending on spindle specifications)		Φ32	Φ35	Φ42	Φ42
Machine weight	kg	Approximately 4600	Approximately 7200	Approximately 10500	Approximately 13500
Machine dimensions	m	2x2.4x2.6	3.2x2.7x2.8	3.8x3.2x3.2	4.3x3.2x3.3
